Fieldpiece JL3KH6

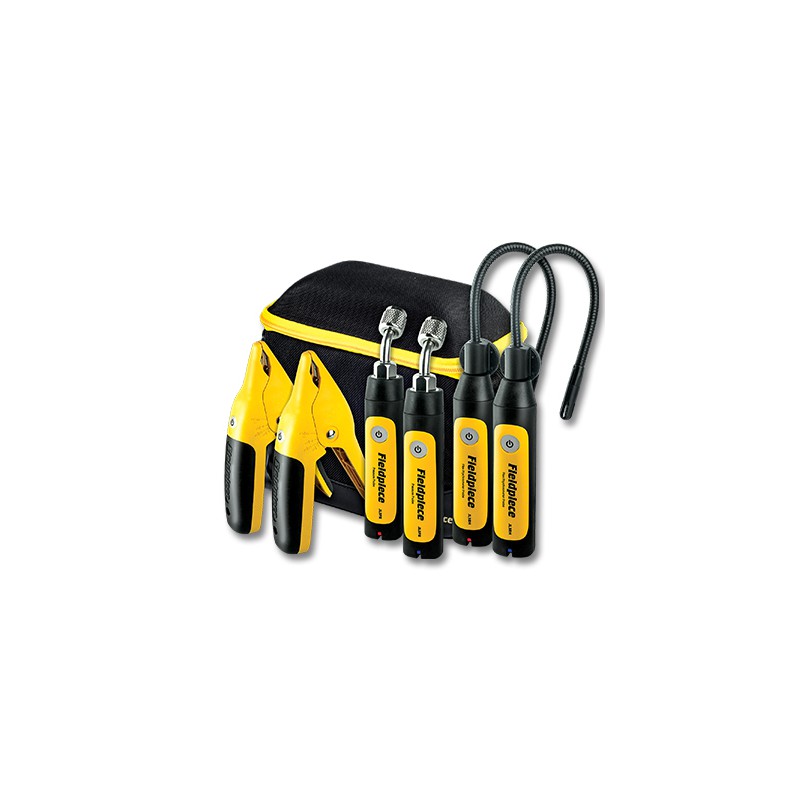

The Fieldpiece JL3KH6 Job Link System Charge and Air Kit provides a full system snapshot quickly and easily. This kit consists of two pressure probes, two pipe clamps, and two psychrometers in a quick access padded case. All measurements can be sent up to 350 feet away directly to your mobile device with the Job Link app. Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the Rapid Rail sensor design, which delivers accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers' flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers.

Advantages of the JL3KH6 Charge and Air Kit

Configurable Psychrometric Testing

The JL3RH Job Link Flex Psychrometer Probe sends air measurements directly to the Fieldpiece Job Link app up to 350 feet away. Measure %RH, dry bulb, wet bulb, dew point, and enthalpy at a register/grille, in the duct, or just walking around. Bend the flexible probe and slide the magnet to conveniently configure the JL3RH to your situation.

The rubberized protective housing is both ergonomic and rugged for daily use. Flip the switch and Job Link app immediately knows which side of the system you're going to place your psychrometer probe.

You can slide the probe's magnet to where you need it. Slide it to the top and reach high grilles/registers. The magnet also holds the psychrometer in place when testing in duct air. Just bend the probe and slide into a 3/8" (10mm) hole in the duct. Use the long wireless range, strong magnet, and flexible probe for quick and easy psychrometrics testing.

Rapid Rail Sensor

The JL3PC Job Link Premium Pipe Clamp Probe sends long range wireless pipe temperature measurements directly to the Fieldpiece Job Link mobile app. Take advantage of the Rapid Rail sensor for extremely fast and accurate measurements.

The Rapid Rail sensor is specifically designed to work on HVACR electrically (and thermally) conductive piping. It uses the pipe itself to complete the circuit so ambient air does not affect testing, resulting in the highest temperature accuracy.

Navigate cramped spaces using the narrow jaw. Rubberized grips and ergonomic design supply comfort and control. Work on a wide range of pipes from 1/4" to 1-3/8". Pipe diameters are etched into sides of the of the clamp for quick reference.

Reliable Pressures Regardless of Location

The JL3PR Job Link Pressure Probe sends long range wireless pressure measurements directly to the Fieldpiece Job Link mobile app. Flip the switch to red or blue and Job Link app immediately knows which side of the system you're going to place your pressure probe.

Easily reach service ports in tight spaces using the angled 1/4" fitting. The rubberized protective housing is both ergonomic and rugged for daily use. The perfect balance of size and capability provided by the JL3PR gives you exactly what you need to diagnose systems quickly and confidently.
