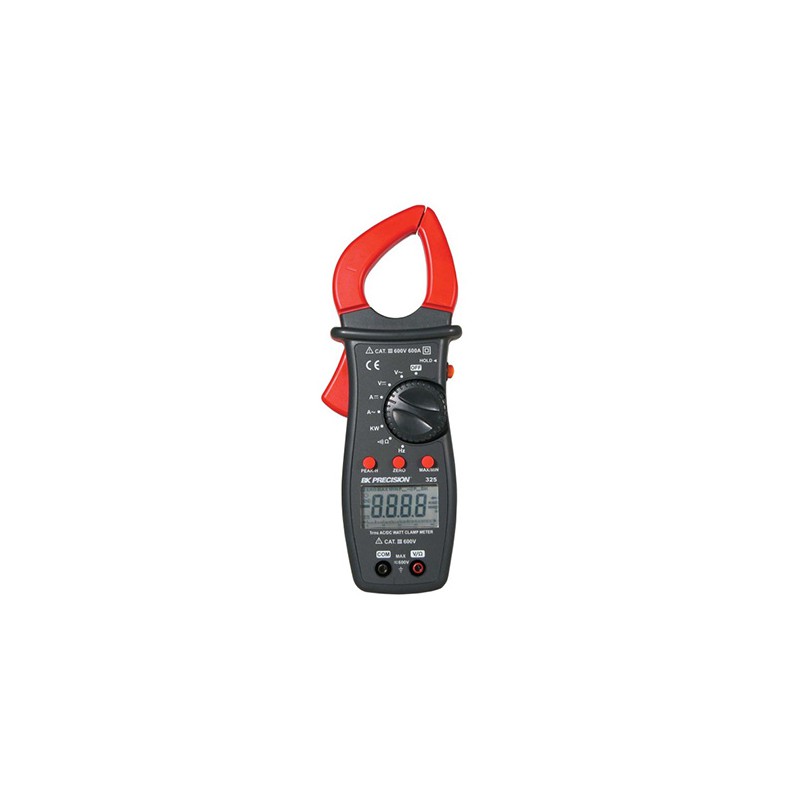

BK Precision 325

The BK Precision Model 325 AC/DC True RMS Power Clamp Meter provides safe, non-invasive measurements of up to 400KW, 400 Amps AC (± 2%+10 dgt), and measures up to 600 Volts AC (±1%+10 dgt), and up to 600 Volts DC (±1.5%+10 dgt) utilizing the a pair of standard test leads. It provides the ability to measure up to 4000Ω of resistance (±1%+5 dgt) and 40Ω of audible continuity.

The 325's Data Hold feature allows the user to freeze the LCD display reading. Other features include a front panel 3-3/4 digit LCD display, automatic range selection, over-range and low battery indicators, automatic power off after 30 minutes, and a maximum jaw opening of 1.37" inches (35mm).

The Model 325 utilizes a 9V battery (NEDA 1604 IEC 6F22 JIS 006P) with an expected life of approximately 200 hours. Its compact size (1.69(H) x 2.95(L) x 8.58(D)) and lightweight (13.24 oz including battery) makes the Model 325 ideal for single-handed operation.
