Description
Performance and Functionality in a Lightweight, Compact Design

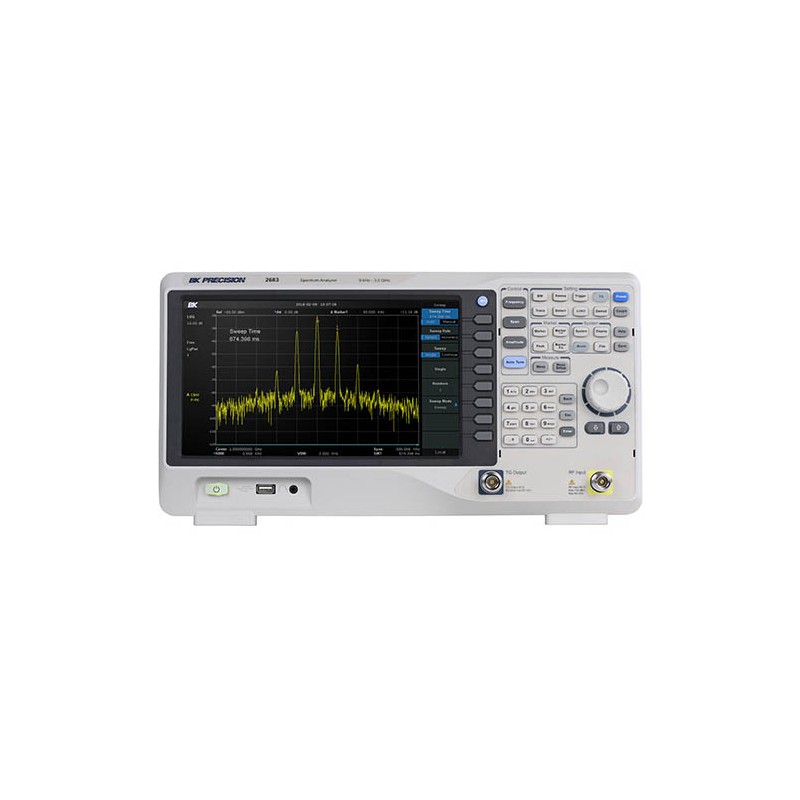

The BK Precision 2683 9 kHz to 3.2 GHz Benchtop Spectrum Analyzer delivers performance and functionality in frequency ranges from 9 kHz to 3.2 GHz in a lightweight, compact design, suitable for lab and field use. This model offers a standard pre-amplifier, tracking generator, and 1 Hz minimum RBW. The included advanced measurements give the user access to even more powerful features. In addition, these analyzers provide low phase noise and displayed average noise level (DANL) to view critical detail in the spectrum which is beautifully displayed on the 10.1" widescreen color display. The reflection measurement option enables VSWR, reflection coefficient, and return loss measurements, while the EMI pre-compliance option enables pre-defined bandwidth set points and quasi-peak detection.
Product Details
BP72344965BP
- 1 - Power Cord
- 1 - Certificate of Calibration
Product Features:
- Frequency range: 9 kHz to 3.2 GHz
- High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
- Low phase noise of -98 dBc/Hz @ 10 kHz offset
- Low level uncertainty of ±0.7 dB
- 1 Hz minimum resolution bandwidth (RBW)
- Includes preamplifier and tracking generator
- 10.1" wide-screen 1024 x 600 color display
- LAN and USBTMC connectivity
- USB host port to store and recall waveform data, setups, and screen captures
- Includes earphone jack and Kensington security slot
Applications:
- 2-way radio
- Site surveying
- EMI pre-compliance
- Characterizing the frequency response of RF devices
